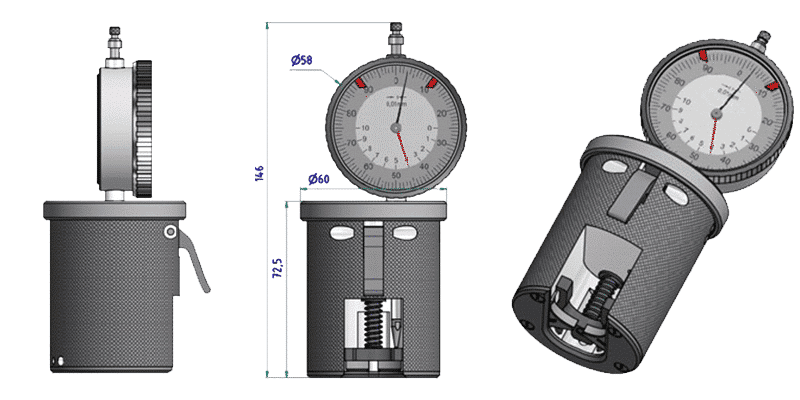

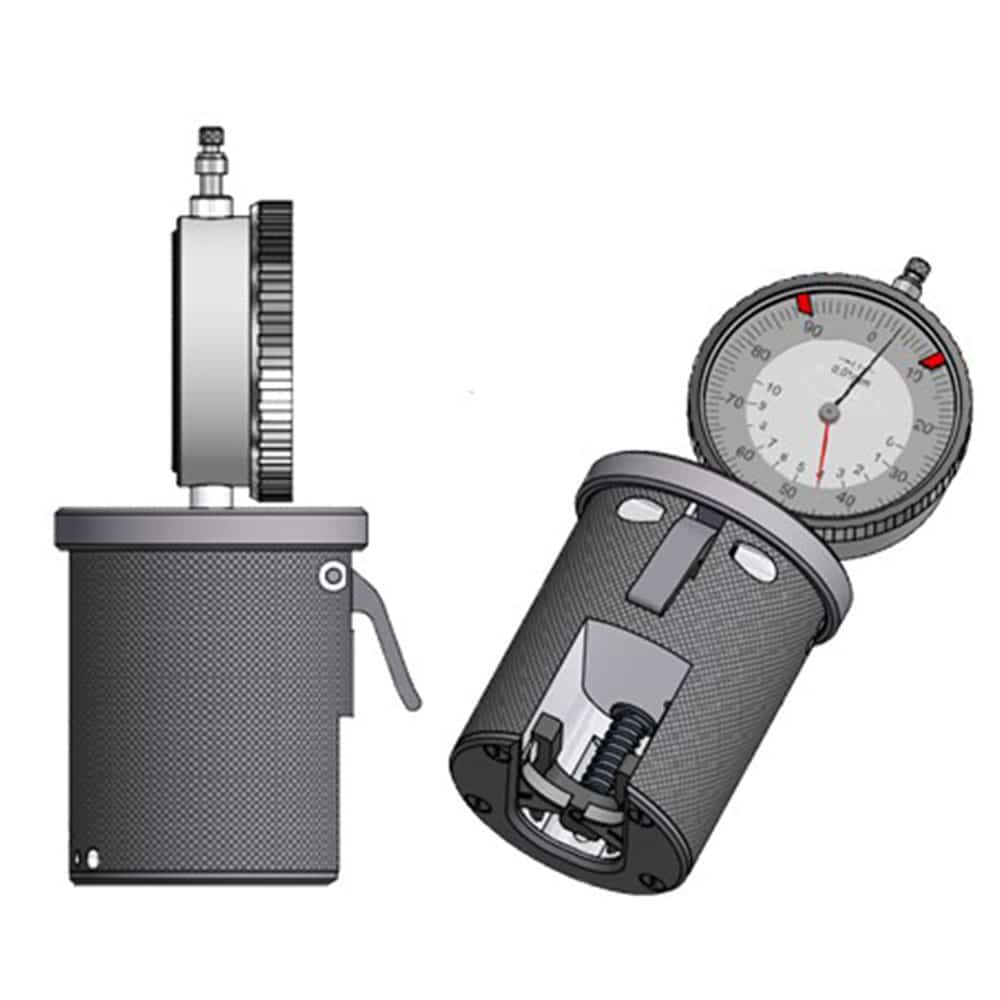

Diameter and height gauge A1169 for specific aerosols
Diameter measuring tool A1169
The A1169 is designed to accurately control the diameter and crimp height of specific aerosols. Reliable and robust, it meets the demands of industrial environments.
Description
Technical information
| Type | Range | Resolution | Measuring force | Weight | Max permissible error | Repeteability error | Operating temperature |
| AEROSOL | 4.0 – 8.5 mm | 0.01 mm | 4 – 10 N | 500 g | 0.06 mm | 0.03 mm | 10°C – 30°C |
Model

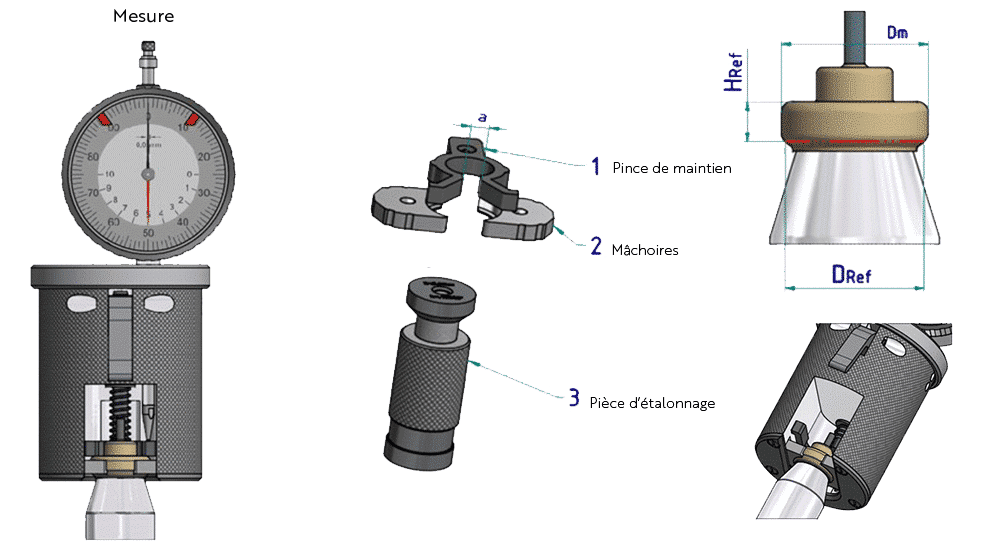

| Instrument order N° | Ø Mouth-diameter Dm | Ø Reference diameter Dref | Reference Height Href | Order N° jaw (pos 2) | Order N° Holding-down clamp | a (mm) | Order N° Calibration part |
| A1161 / A1161i | 14 mm | 13.50 mm / 0.5315 inch | 5.00 mm / 0.19685 inch | 0840-14 | 0840-11 | 5 | 0761-32 |
| A1162 / A1162i | 15 mm | 14.70 mm / 0.5787 inch | 7.00 mm / 0.27559 inch | 0840-10 | 0840-19 | 5 | 0761-24 |
| A1163 / A1163i | 16 mm | 15.00 mm / 0.5905 inch | 5.00 mm / 0.19685 inch | 0840-17 | 0840-19 | 5 | 0761-38 |
| A1164 / A1164i | 16 mm | 15.40 mm / 0.6063 inch | 5.00 mm / 0.19685 inch | 0840-16 | 0840-11 | 5 | 0761-34 |
| A1166 / A1166i | 19 mm | 18.20 mm / 0.7165 inch | 5.00 mm / 0.19685 inch | 0840-18 | 0840-19 | 5 | 0761-39 |
| A1167 / A1167i | 20 mm | 19.00 mm / 0.76 inch | 5.12 mm / 0.20157 inch | 0840-03 | 0840-04 | 14.6 | 0761-23 |
| A1168 / A1168i | 20 mm | 19.40 mm / 0.7638 inch | 7.00 mm / 0.27559 inch | 0840-12 | 0840-04 | 14.6 | 0761-41 |
| A1169 / A1169i | 20 mm | 19.85 mm / 0.7795 inch | 5.00 mm / 0.19685 inch | 0840-02 | 0840-04 | 14.6 | 0761-15 |
| A1171 / A1171i | 19 mm | 18.20 mm / 0.7165 inch | 4.00 mm / 0.15748 inch | 0840-27 | 0840-19 | 5 | 0761-40 |
Delivered with:
- Corresponding jaws
- Holding clamp

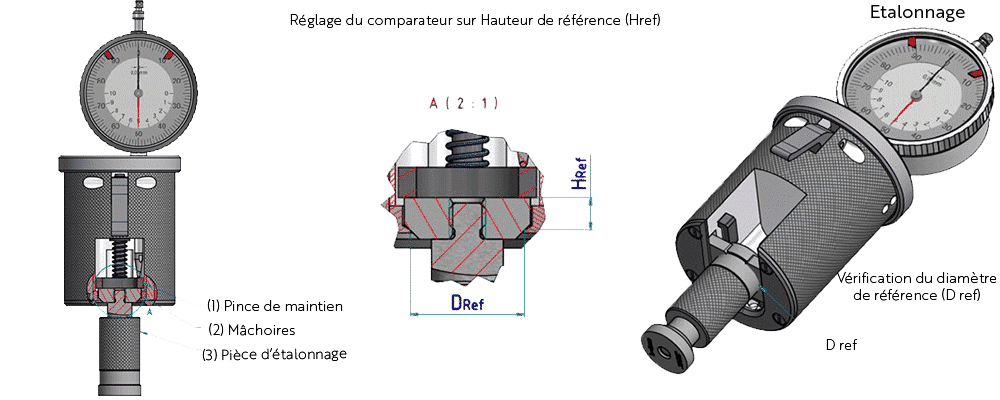

- Calibration part
- Wooden case
