Cable cam grips 1000 N

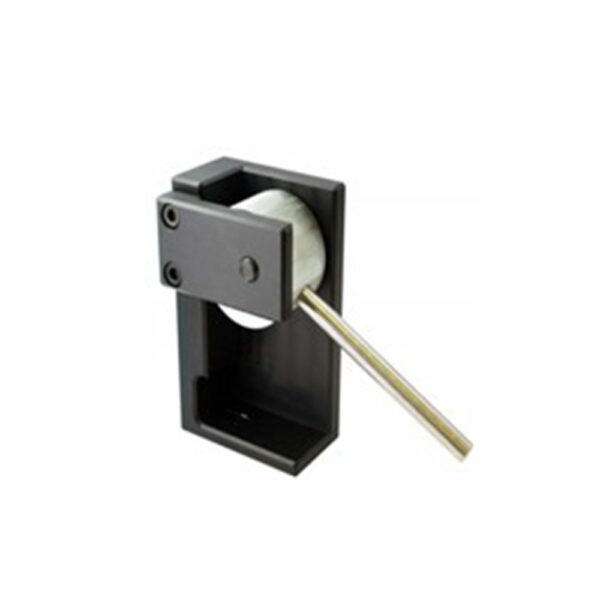

Cable cam grips are designed for holding insulated cables and wires. The sample is secured by the cam, which self-tightens as load as applied and spreads the load evenly. Serrated or smooth cam, supplied with socked-cap bolt for stand fixing.
It is used in general for tensile test of crimped terminals, wires, tapes, foils.
Description
Technical information
| Model | Capabilities | Thread 1 | Type | Max sample width | Max sample tickness | Lenght | Weight | ||
| 1 | 1 kN | 100 kgf | 225 lbf | 10-32 UNF | Serrated | 13 mm (0.51″) | 10 mm (2.95″) | 75 mm (2.95″) | 230 g (0.51 lb) |
| 2 | 1 kN | 100 kgf | 225 lbf | 10-32 UNF | Smooth | 13 mm (0.51″) | 10 mm (2.95″) | 75 mm (2.95″) | 230 g (0.51 lb) |
