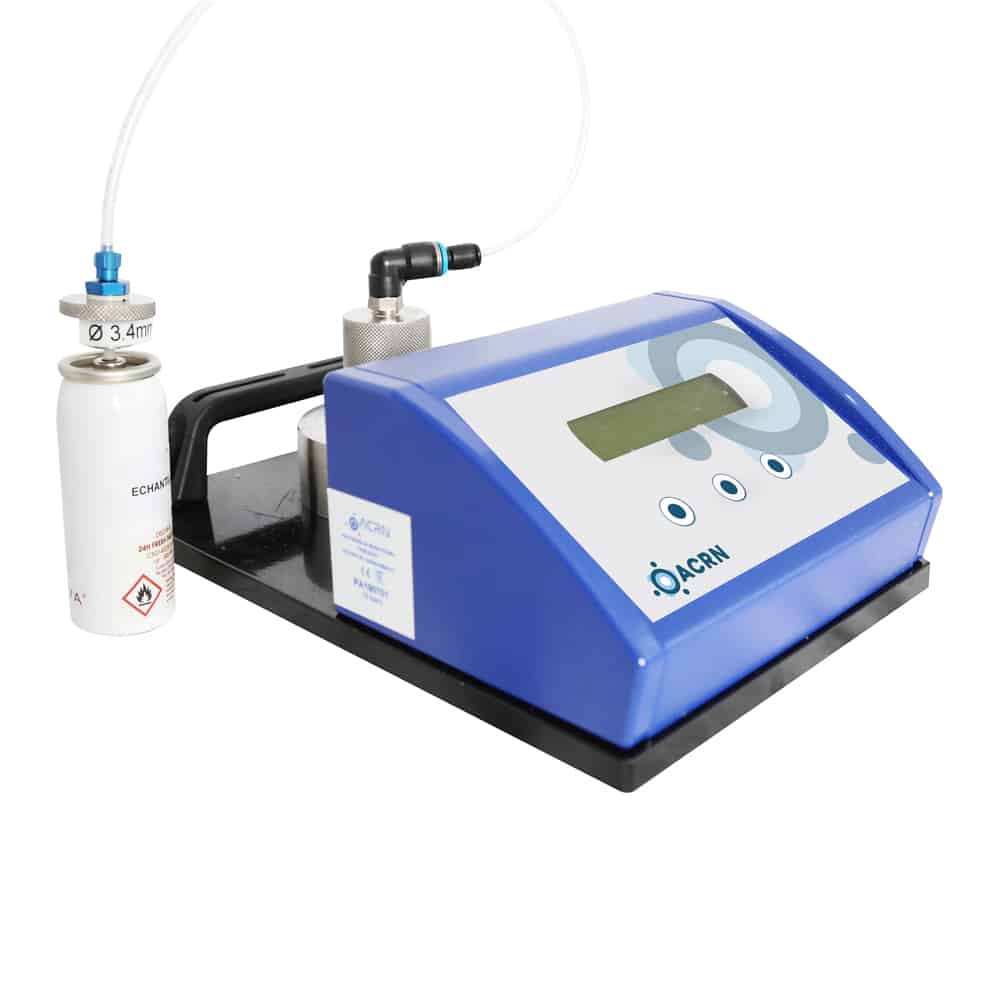

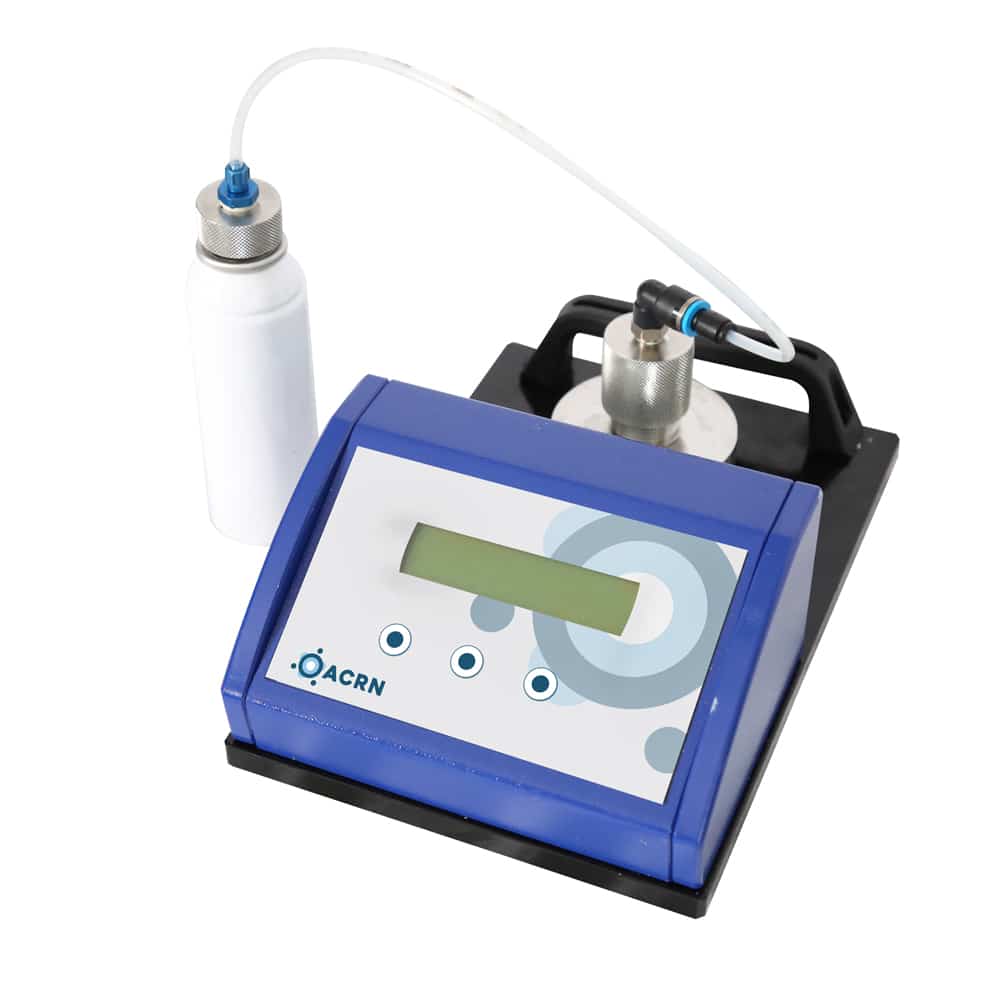

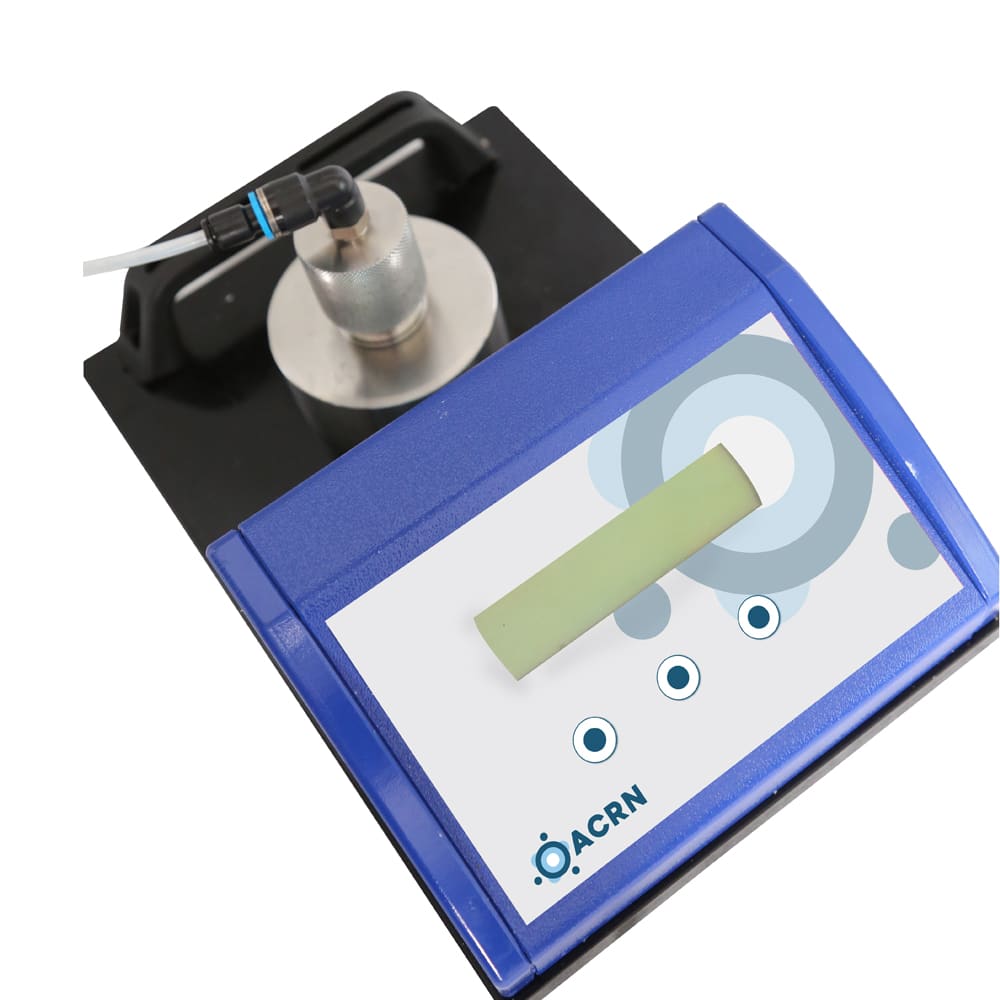

Aerosol pressure controler PA-X
Electronic pressure gauge
The PA-x is an electronic pressure gauge suitable for use with various aerosol spray nozzles to monitor the pressure of the propellant gas during the manufacture of aerosol products.
3 adapters supplied for standard aerosols.
An XA version P (pressure) console is used to read the pressure value inside the aerosol under test.

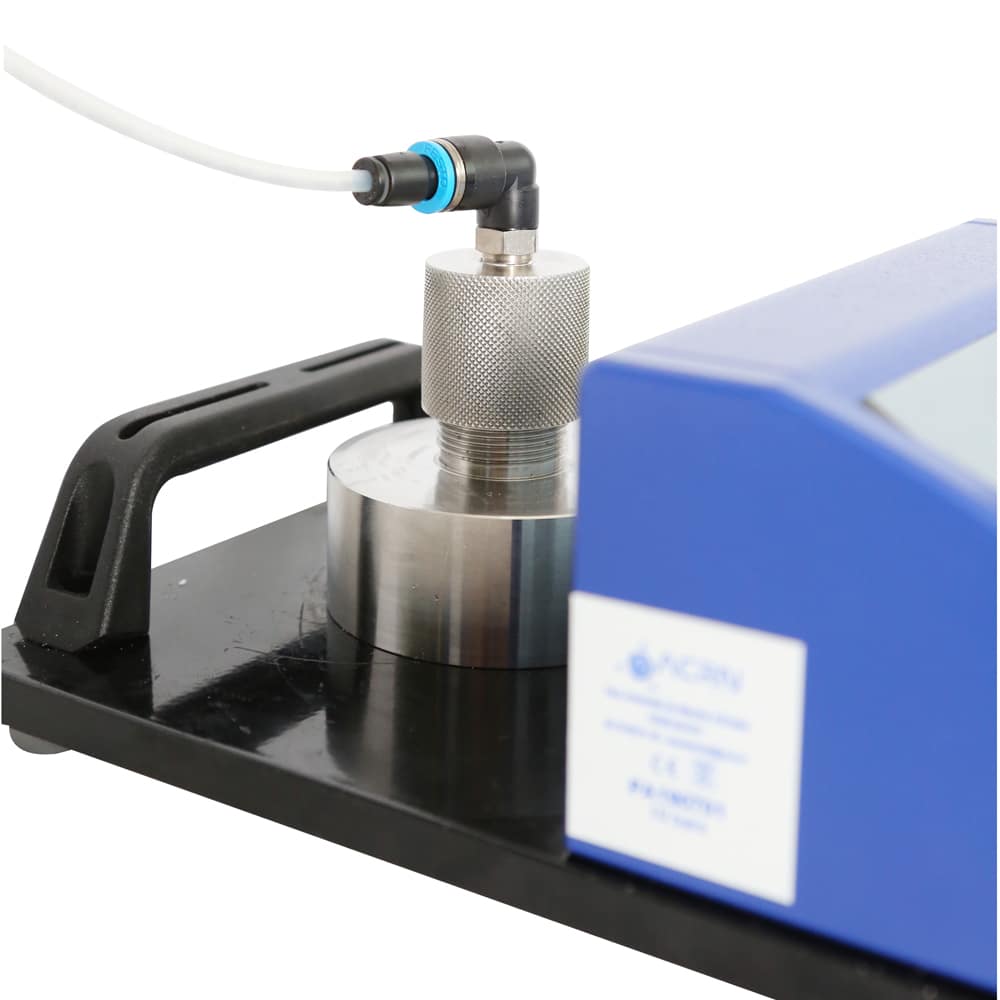

By simply pressing the aerosol canister into the adapters, the result is displayed on the screen.
Description
Options
| Matrix printer |
| RS232 or RS232-to-USB PC cable |
| DataXport® Software for data export on PC |
| Customised adapters for specific aerosols |
| COFRAC connected calibration certificate up to 10 bar |
| Annual calibration in the ACRN metrology laboratory |
Delivered with:
- Transport case
- Battery charger

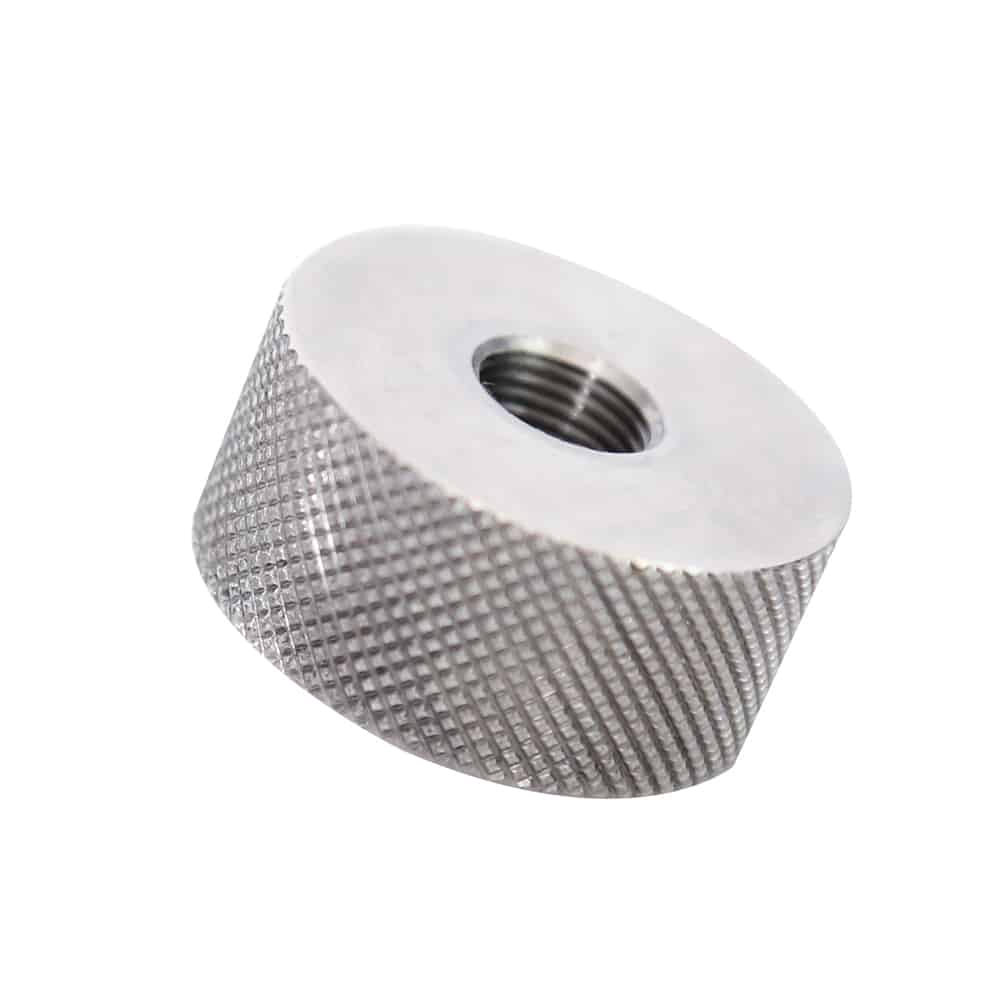

- 3 adapters for standard aerosols on the market (1 male, 1 female 4mm diameter, 1 female 3.4mm diameter)
- COFRAC connected calibration certificate up to 9 bar
Technical informations
| Measurement mode | Crete and Saviour |
|---|---|
| Memory | Storage of 200 values in the device |
| Measured pressure | Thrust pressure measurement up to 10 bar |
| Units | Bar, Psi |
| Sensor | Flush diaphragm pressure sensor |
| Accuracy | 1% of full scale |
| Power supply | On 12V electric battery with 220V charger included – EU plug |
| Connectique | RS232 Port |
| Dimensions | L250 x W170 x H75mm |
| Weight | 2,7 kg |
| Guarantee | 1 year |
